B.J.S CAHILL'S BUTTERFLY MAP AND BEYOND:
A COMPARATIVE GALLERY OF OCTAHEDRAL WORLD MAPS
Compiled by Gene Keyes
  1914 Denoyer
Date
Author
This scale
<— Source
<— % change
[1914?]
B.J.S. Cahill
1/200 M
1/74 M
37%

Type

Aspect

Defining
Meridian


Geocells


Original size
Curvilinear
N.America; Asia split
22 1/2°
15 x 10° &
7 1/2 x 10 °
406 x 558 mm
Remarks:

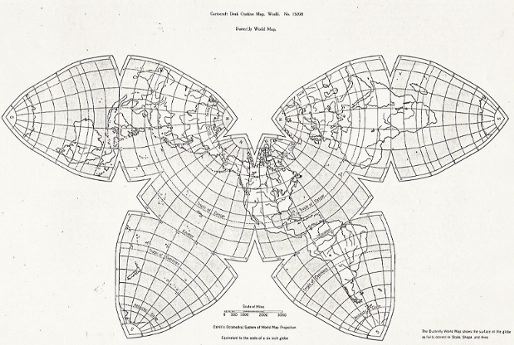

No date, but basic design and size resemble a 1914 version, "The Circumaviation of the Globe Under the Auspices of the Panama-Pacific Universal Exposition 1915". (Where Cahill was awarded a gold medal for the map; but the trans-global air race was put off till 1922 . . . ) So far as I know, this was the largest* published version of Cahill's map, 16 x 22"; unfortunately, its Asia-split layout is by far the least desirable of various Butterfly and M-shaped arrangements.

*Cahill and the C.S. Hammond Co. made an Agreement in 1924 to publish a 1/28 M map, but by 1926 Hammond had backed out. (Papers in Cahill Collection [below], which has a much larger hand-made prototype of 1/12 M.) Waterman's is now the largest published Butterfly, 1/43 M; my unpublished wall draft is 1/20 M.
Source (print)
Chicago: Denoyer-Geppert Co., Cartocraft Desk Outline Map, World, No. 15098. (B.J.S. Cahilll Collection, Bancroft Library, Map Room, University of California, Berkeley) Captions read:
"Cahill's Octahedral System of World Map Projection"
"Equivalent to the scale of  a six inch globe"
"The Butterfly World Map shows the surface of the globe as fairly correct in Scale, Shape, and Area"

Item # 54 in Bancroft Library Cahill map collection index. See also my "Notes on Scaling Cahill and Cahill-Keyes Maps" as to why I impute a scale of 1/74 M, rather than ca. 1/83 M as stated by the index.
Source (online: page title & link)
This page:
http://www.genekeyes.com/CAHILL_GALLERY/1914-Cahill-Denoyer.html
Source (online: item link)
This page:
http://www.genekeyes.com/CAHILL_GALLERY/1914-Cahill-Denoyer.jpg
